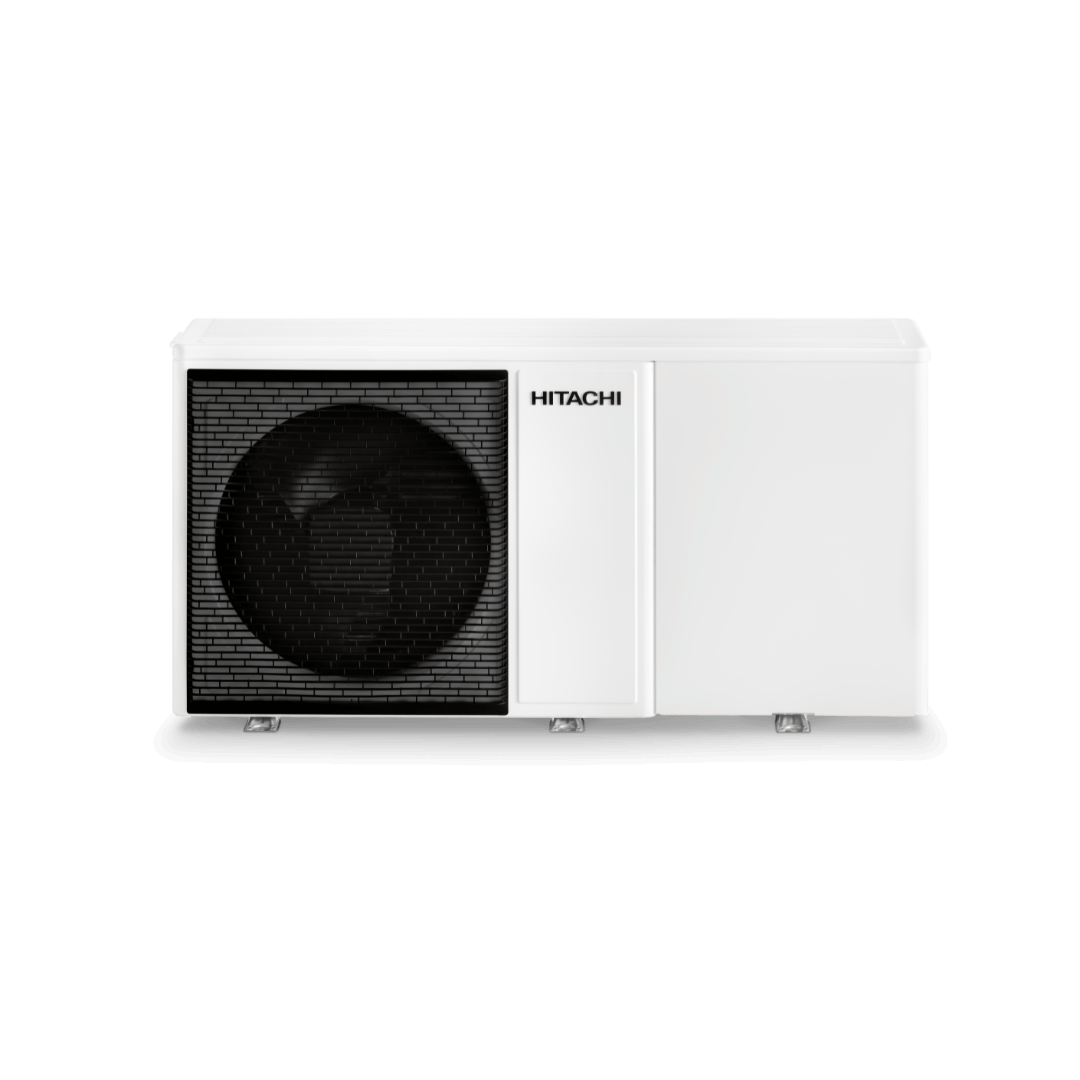

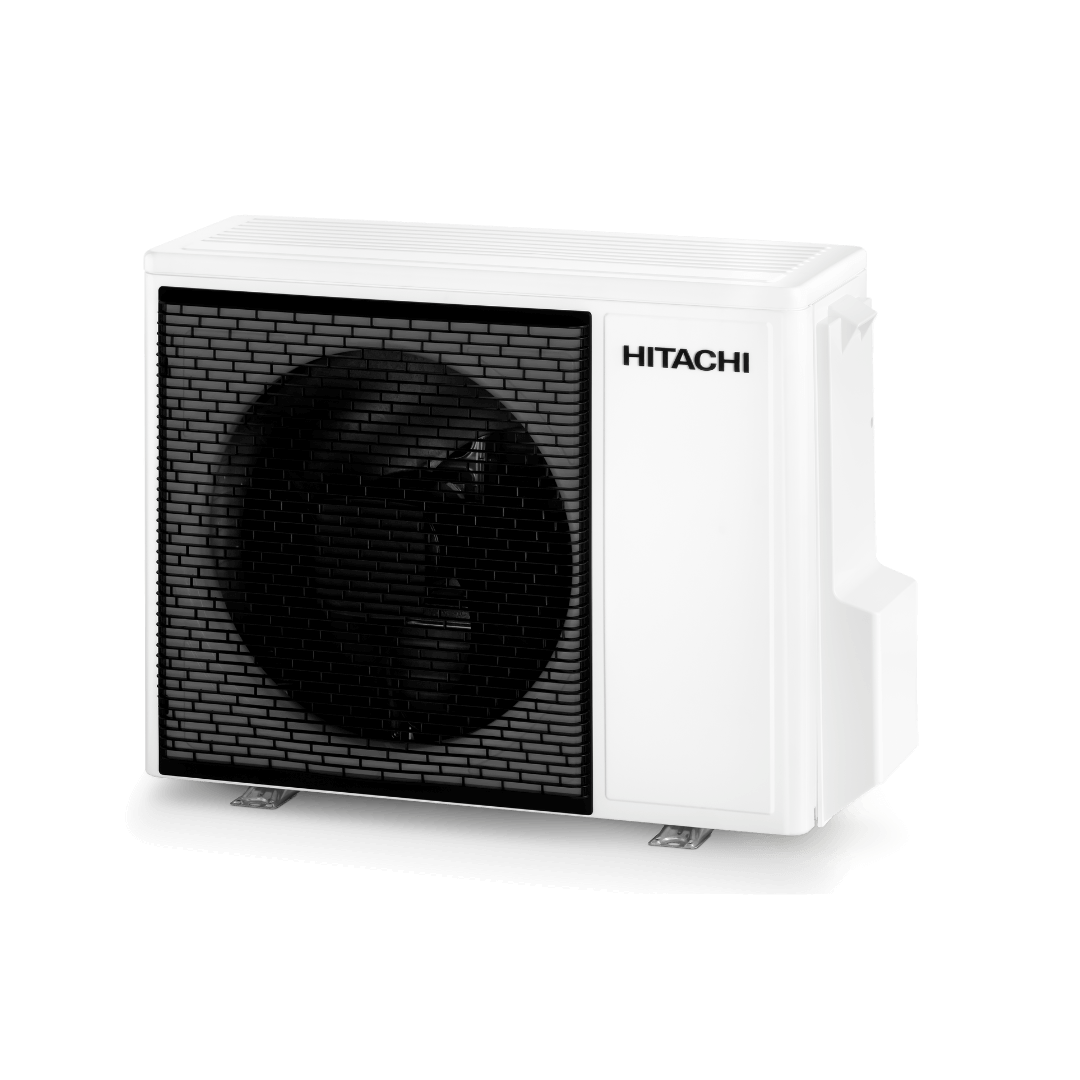

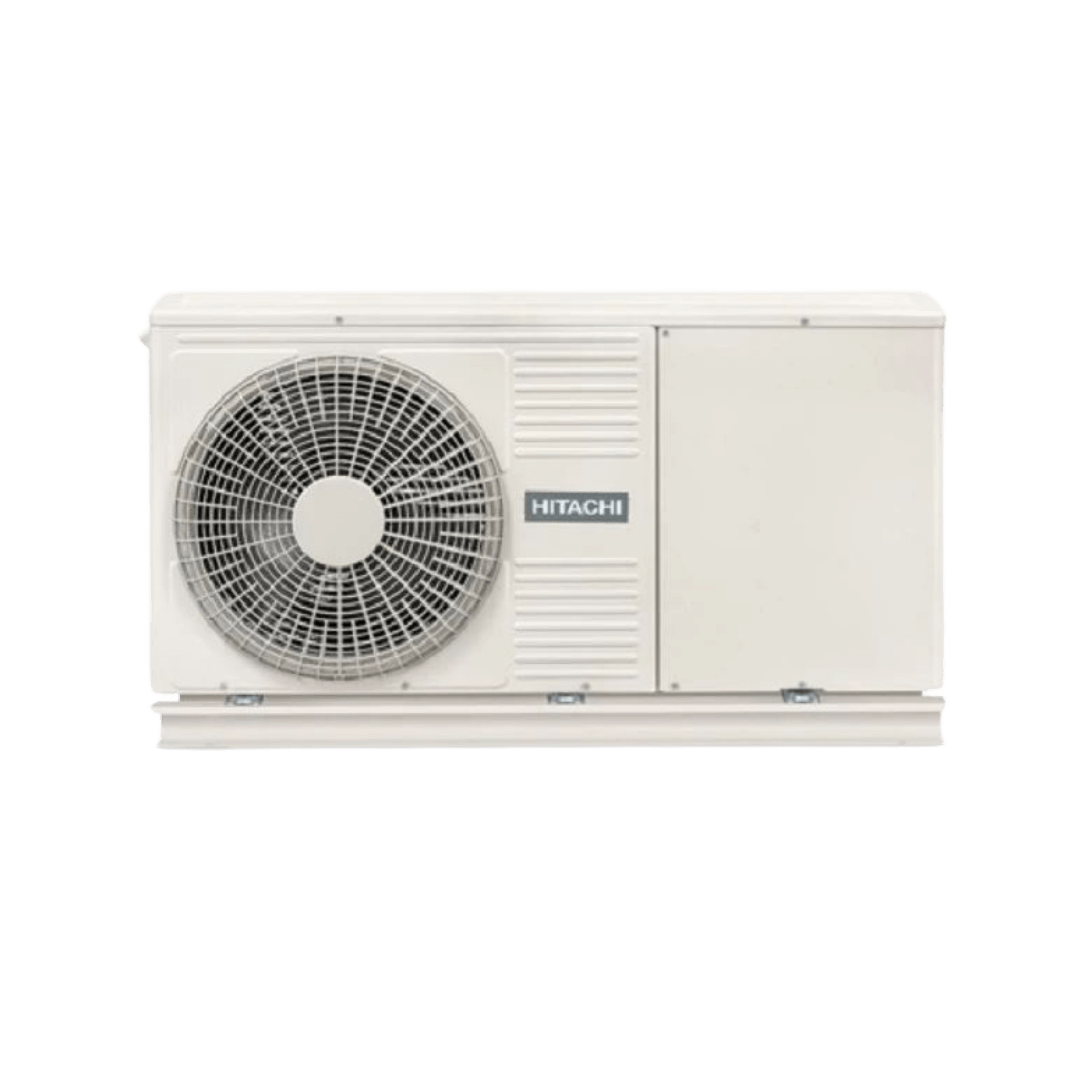

The Hitachi Yutaki M is a compact, high-efficiency R32 monobloc heat pump designed for simple outdoor-only installation with no refrigerant connections or indoor module. With models ranging from 4.3 to 16.0 kW, the Yutaki M provides heating, cooling, and DHW from a single external unit. It’s ideal for residential spaces with limited indoor installation area, renovation projects, or homeowners looking to reduce energy costs and carbon emissions.
| Model | Supplementary electric heating element (kW) | Net weight (kg) | Dimensions (HxWxD) (mm) | Sound pressure level at 5 m / sound power level (dB(A)) | Airflow rate (m³/h) | Operating ranges Cooling / Heating / DHW (°C) | Controller |
|---|---|---|---|---|---|---|---|
| RASM-2VR2E | 6 (2 + 2 + 2) | 71 | 628 x 1264 x 305 | 30 / 50 | 2436 | +10~+46 / -20~+25 / -20~+35 | Not included (PC-ARFH2E) |
| RASM-3VR2E | 6 (2 + 2 + 2) | 73 | 628 x 1264 x 305 | 30 / 51 | 2682 | +10~+46 / -20~+25 / -20~+35 | Not included (PC-ARFH2E) |
| RASM-4(V)R1E | 6 (2 + 2 + 2) | 130 | 1380 x 1252 x 370 | 41 / 61 | 7920 | +10~+46 / -25~+25 / -20~+35 | Not included (PC-ARFH2E) |
| RASM-5(V)R1E | 6 (2 + 2 + 2) | 138 | 1380 x 1252 x 370 | 43 / 63 | 8280 | +10~+46 / -25~+25 / -20~+35 | Not included (PC-ARFH2E) |
| RASM-6(V)R1E | 6 (2 + 2 + 2) | 138 | 1380 x 1252 x 370 | 43 / 63 | 8280 | +10~+46 / -25~+25 / -20~+35 | Not included (PC-ARFH2E) |
| RASM-7R1E | 6 (2 + 2 + 2) | 138 | 1380 x 1252 x 370 | 45 / 65 | 8640 | +10~+46 / -25~+25 / -20~+35 | Not included (PC-ARFH2E) |
