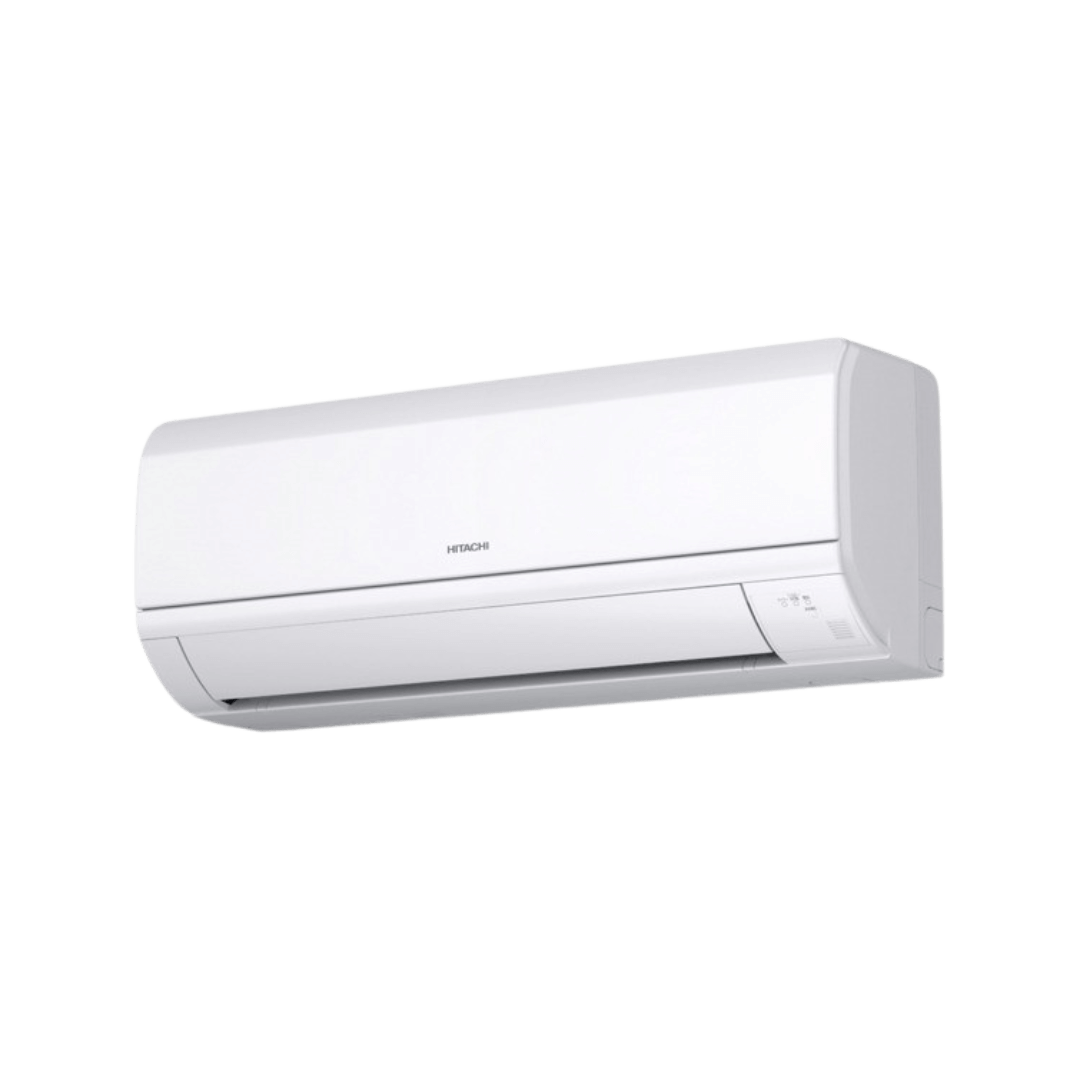

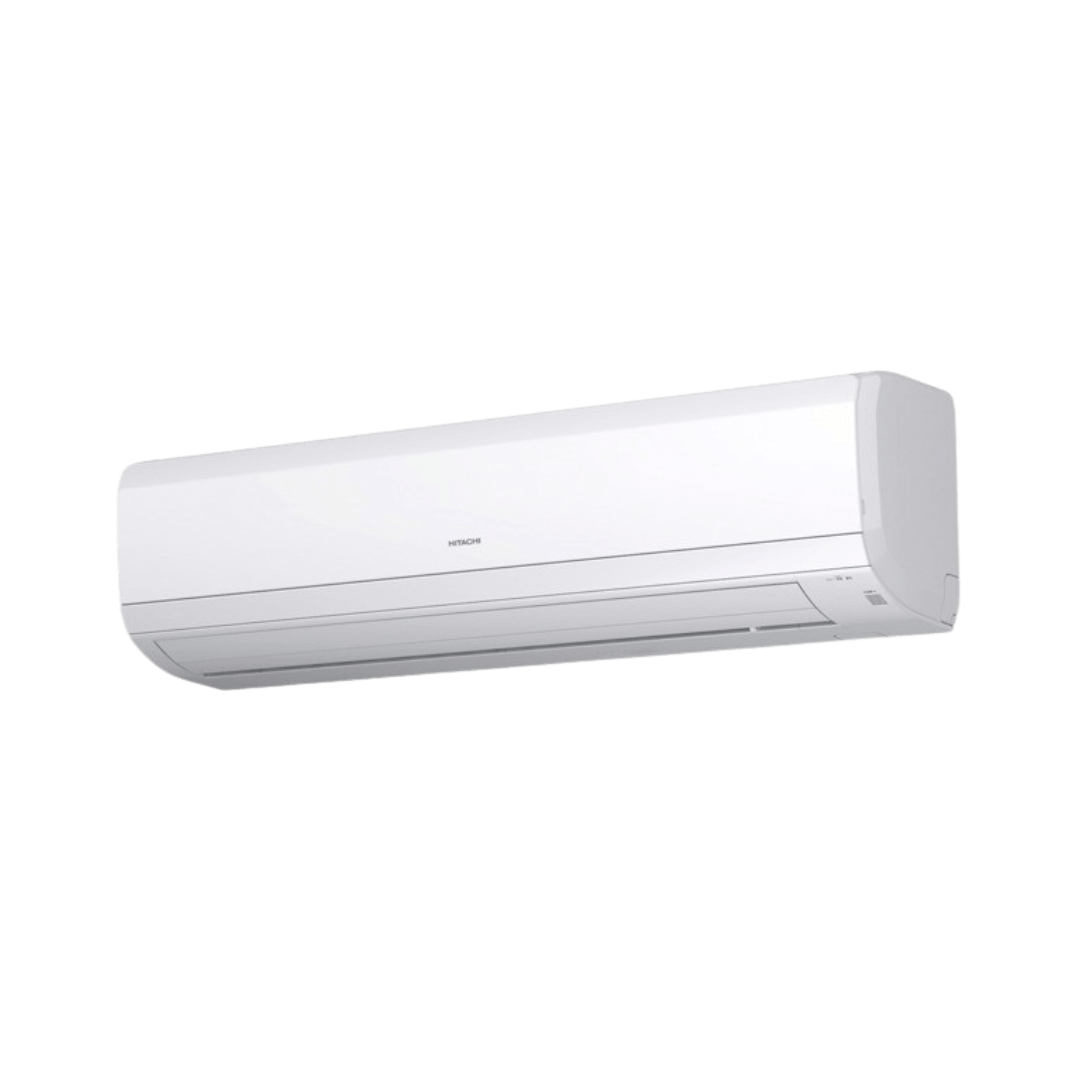

The Hitachi RPK-FSRM & RPK-FSRHM Series Wall Mounted Indoor Units are designed to provide efficient climate control while maintaining a modern and discreet appearance. These units are compact and lightweight, making them ideal for environments where space is limited. With energy-efficient operation and seamless integration into various Hitachi HVAC systems, they offer an effective solution for residential, office, and commercial applications.
| Model | Cooling (kW) | Heating (kW) | Sound Pressure (dB(A)) | Sound Power (dB(A)) | Airflow (m³/h) | Dimensions (mm) | Weight (kg) | Fuse (A) |
|---|---|---|---|---|---|---|---|---|
| RPK-0.4FSRM | 1.10 | 1.30 | 29 / 30 / 31 / 32 | 45–46–48–49 | 360 / 402 / 438 / 450 | 300 × 790 × 230 | 9.0 | 5 |
| RPK-0.6FSRM | 1.70 | 1.90 | 29 / 31 / 32 / 35 | 45–46–48–49 | 360 / 420 / 450 / 480 | 300 × 790 × 230 | 10.0 | 5 |
| RPK-0.8FSRM | 2.20 | 2.50 | 30 / 32 / 35 / 39 | 45–47–49–53 | 390 / 420 / 480 / 600 | 300 × 900 × 230 | 11.0 | 5 |
| RPK-1.0FSRM | 2.80 / 3.60 | 3.20 / 4.00 | 31 / 34 / 37 / 40 | 47–50–53–55 | 570 / 660 / 780 / 870 | 300 × 900 × 230 | 11.0 | 5 |
| RPK-1.5FSRM | 4.00 | 4.80 | 33 / 36 / 40 / 46 | 47–50–54–58 | 450 / 540 / 660 / 840 | 300 × 900 × 230 | 11.0 | 5 |
| RPK-2.0FSRM | 5.00 / 5.60 | 5.60 / 6.30 | 31 / 34 / 37 / 40 | 47–50–53–55 | 570 / 660 / 780 / 870 | 300 × 1100 × 260 | 14.5 | 5 |
| RPK-2.5FSRM | 5.60 / 7.10 | 6.30 / 8.50 | 35 / 38 / 42 / 45 | 51–54–58–60 | 720 / 840 / 990 / 1110 | 300 × 1100 × 260 | 15.0 | 5 |
| RPK-3.0FSRM | 8.00 | 9.00 | 35 / 40 / 44 / 47 | 51–56–60–63 | 750 / 930 / 1050 / 1200 | 300 × 1100 × 260 | 15.0 | 5 |
| RPK-4.0FSRM | 10.00 | 11.20 | 39 / 44 / 48 / 51 | 54–60–64–65 | 870 / 1050 / 1200 / 1380 | 300 × 1100 × 260 | 15.0 | 5 |
| RPK-0.4FSRHM | 1.10 | 1.30 | 29 / 30 / 31 / 32 | 45–46–48–49 | 360 / 402 / 438 / 450 | 300 × 790 × 230 | 9.0 | 5 |
| RPK-0.6FSRHM | 1.70 | 1.90 | 29 / 31 / 32 / 35 | 45–46–48–49 | 360 / 420 / 450 / 480 | 300 × 790 × 230 | 10.0 | 5 |
| RPK-0.8FSRHM | 2.20 | 2.50 | 30 / 32 / 35 / 39 | 45–47–49–53 | 390 / 420 / 480 / 600 | 300 × 900 × 230 | 11.0 | 5 |
| RPK-1.0FSRHM | 2.80 / 3.60 | 3.20 / 4.00 | 31 / 34 / 37 / 40 | 47–50–53–55 | 570 / 660 / 780 / 870 | 300 × 900 × 230 | 11.0 | 5 |
| RPK-1.5FSRHM | 4.00 | 4.80 | 33 / 36 / 40 / 46 | 47–50–54–58 | 450 / 540 / 660 / 840 | 300 × 900 × 230 | 11.0 | 5 |
