StrutFoot LD Frames

The StrutFoot™ FM Flat Roof Support System offers total flexibility for mounting HVAC units, cable trays, and M&E services on flat roofs without penetrating the waterproof membrane. These modular systems are compatible with all standard channel brackets and feature anti-vibration pads pre-attached to the feet. With quick assembly, standardized and custom lengths, and multiple leg/frame configurations available, it’s an efficient and scalable solution for a wide range of installations.

Key Benefits:

Lightweight modular channel frame
Suitable for multiple roof plant loads
No roof penetration required
Pre-attached vibration-damping pads
Quick to install and extend

Available Configurations:

SF1302 – StrutFoot 2: 2-leg / 2-sliding arm / 1000mm rails / 1300mm arms / 28kg / 700kg SWL
SF1304 – StrutFoot 4: 4-leg / 4-arm / 2000mm rails / 1300mm arms / 49kg / 1050kg SWL
SF1306 – StrutFoot 6: 6-leg / 6-arm / 3000mm rails / 1300mm arms / 70kg / 1400kg SWL
SF1308 – StrutFoot 8: 8-leg / 8-arm / 4000mm rails / 1300mm arms / 91kg / 1750kg SWL
SF1310 – StrutFoot 10: 10-leg / 10-arm / 5000mm rails / 1300mm arms / 113kg / 2100kg SWL
SF1312 – StrutFoot 12: 12-leg / 12-arm / 6000mm rails / 1300mm arms / 134kg / 2450kg SWL

Standards & Certifications:

Welding: ISO 9606-1
Galvanizing: BS EN ISO 1461:1999
CE Marked: 1090
Channel: BS6946

StrutFoot Cushion Clamps

StrutFoot SFR Vibro Mats

StrutFoot LD Frames

StrutFoot Cushion Clamps

StrutFoot SFR Vibro Mats

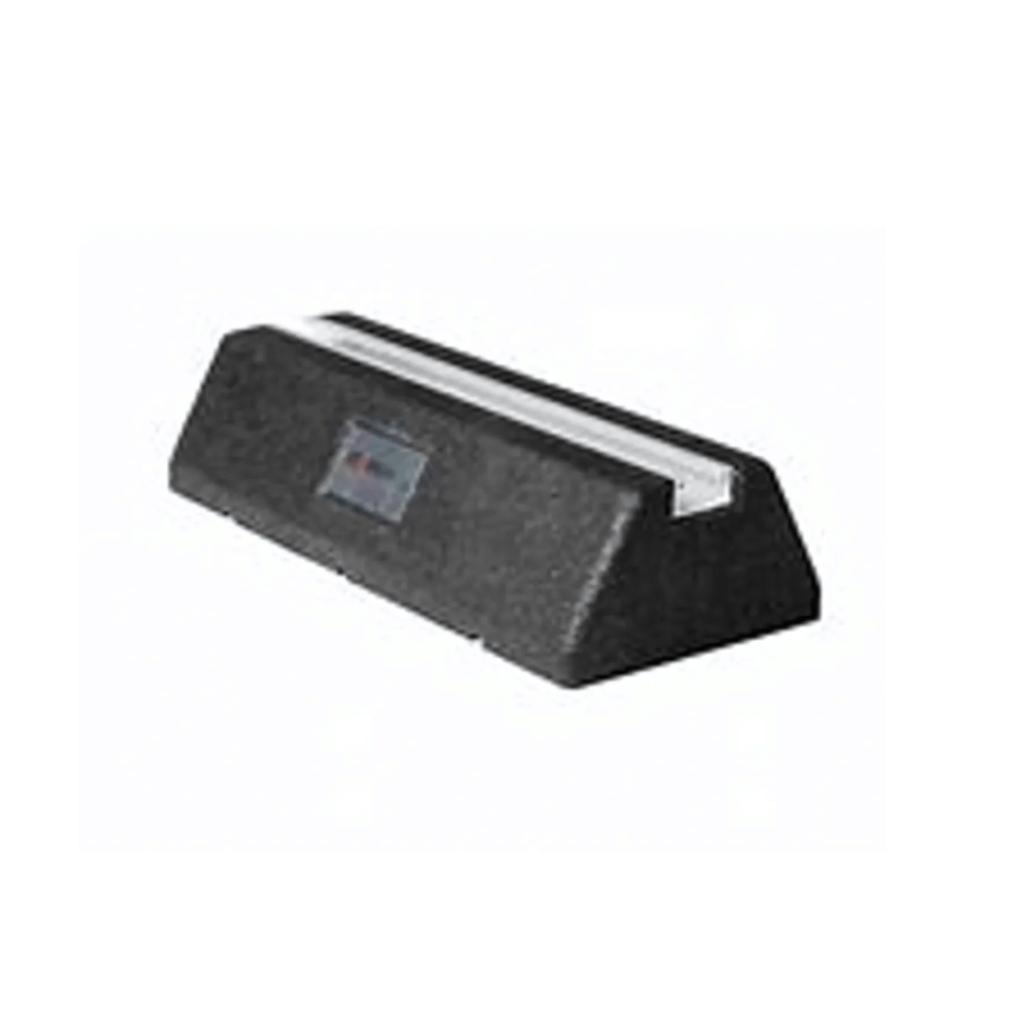

StrutFoot SFR Mini Split Kits

StrutFoot Basket Feet

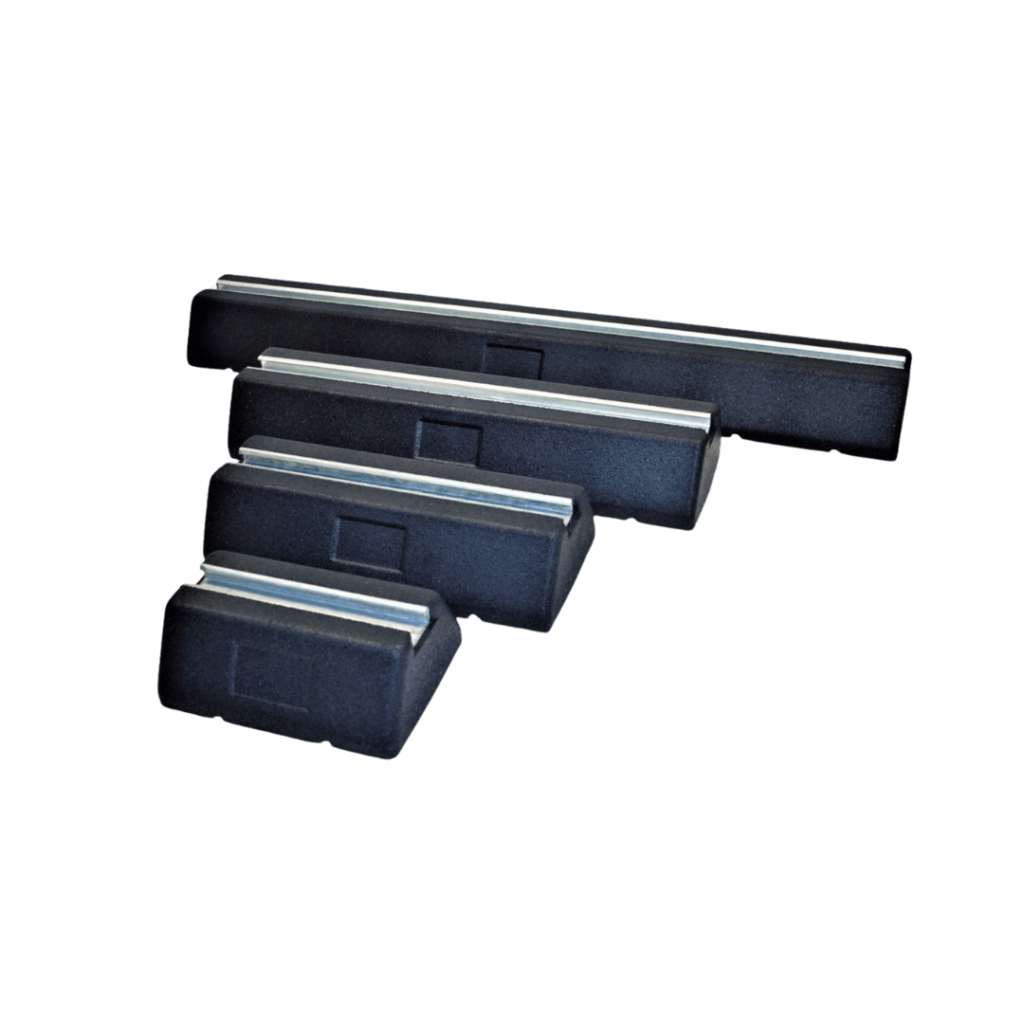

StrutFoot SFR Rubber Feet
