System Type: Heat Pump / Heat Recovery
Refrigerant Type: R410A
Available Capacities: 22.40 kW, 28.00 kW, 33.50 kW (Cooling); 25.00 kW, 31.50 kW, 37.50 kW (Heating)
Power Supply: 3Φ 400V
Compressor Type: Inverter
Max Indoor Units: Up to 39 units
Pipe Length Limits: Max piping 500 m; height difference: 50 m (above), 40 m (below)
Efficiency Ratings: SEER 7.59 – 8.31; SCOP 4.66 – 5.62
External Static Pressure: 30 Pa
Special Features: Compact design, low noise, smart defrost

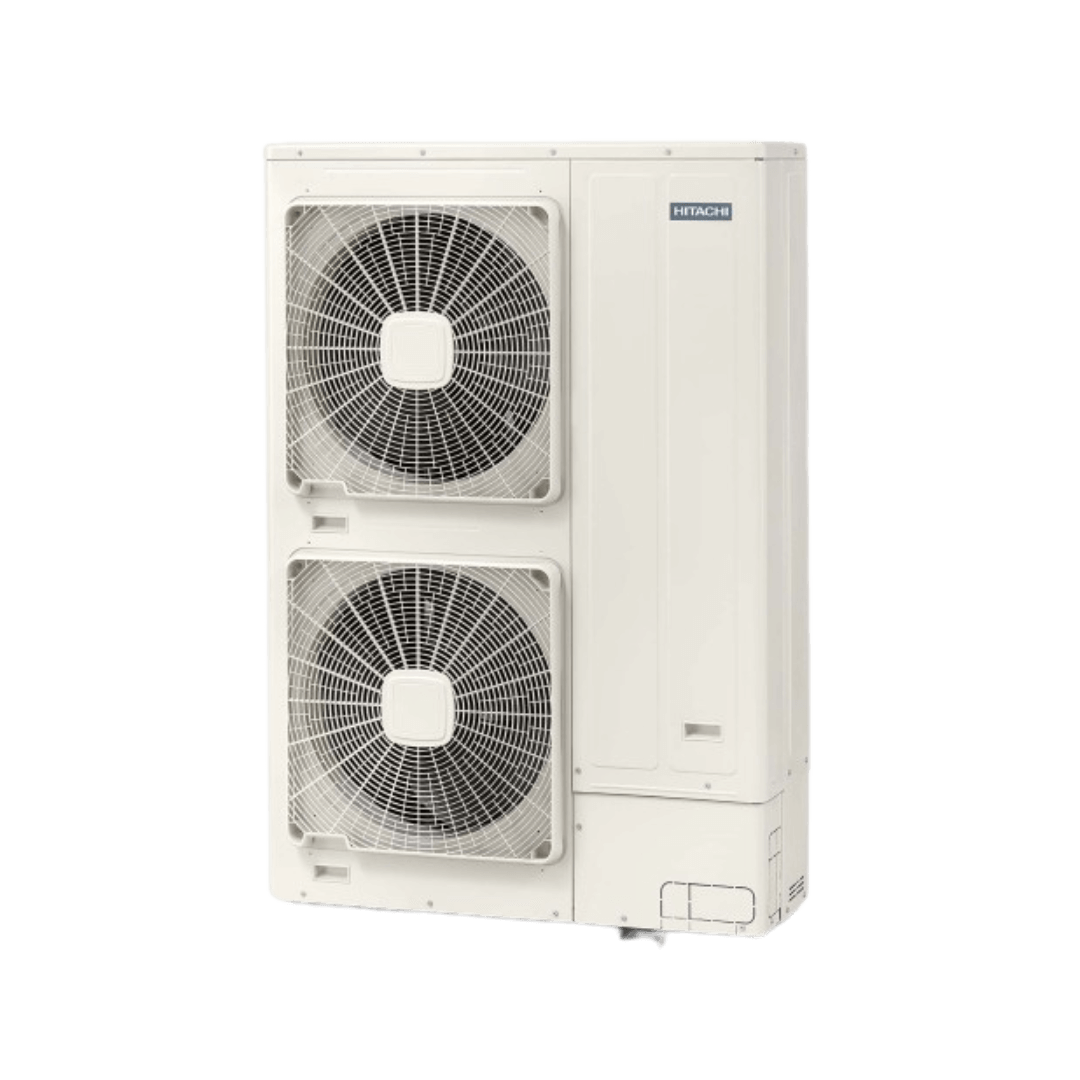

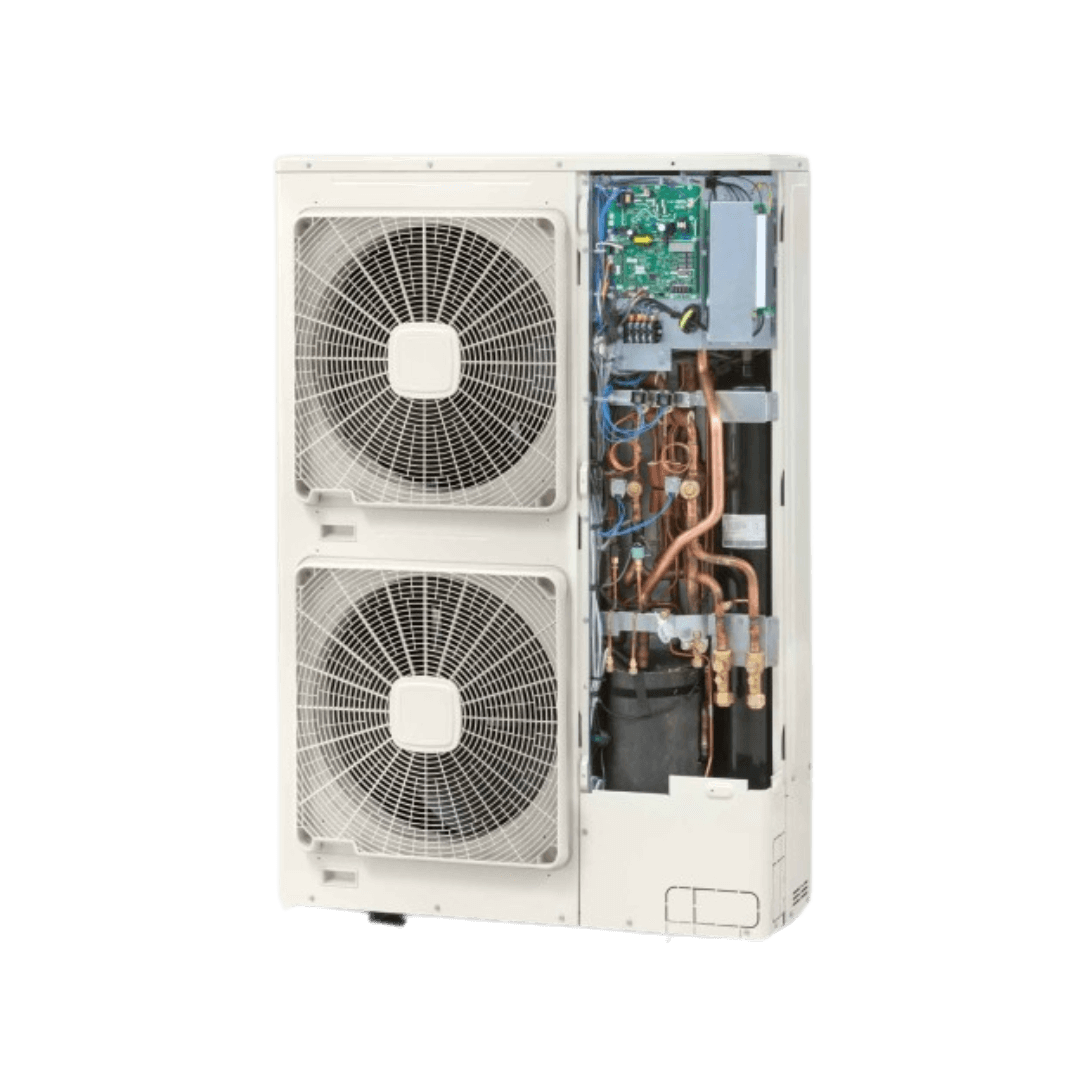

The Hitachi Sideflow VRF Outdoor Units provide efficient climate control solutions for commercial applications. Designed for space-constrained installations, these units support both heat pump and heat recovery functions. With inverter technology, they offer optimized energy efficiency and flexible indoor unit connections, ensuring reliable and cost-effective performance.
| Model | Cooling (kW) | Heating (kW) | SEER | SCOP | Max Indoor Units | Dimensions (mm) | Weight (kg) | Sound Pressure (dBA) | Sound Power (dBA) | Airflow (m³/h) | Refrigerant | Charge (kg) | ESP (Pa) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RAS-8FSXNME | 22.40 | 25.00 | 7.59 | 5.62 | 26 | 1650×1100×390 | 188 | 55 | 76 | 9900 | R410A | 4.2 | 30 |
| RAS-10FSXNME | 28.00 | 31.50 | 8.31 | 4.72 | 32 | 1650×1100×390 | 194 | 59 | 77 | 11100 | R410A | 5.5 | 30 |
| RAS-12FSXNME | 33.50 | 37.50 | 8.26 | 4.66 | 39 | 1650×1100×390 | 196 | 60 | 78 | 12600 | R410A | 6.0 | 30 |
