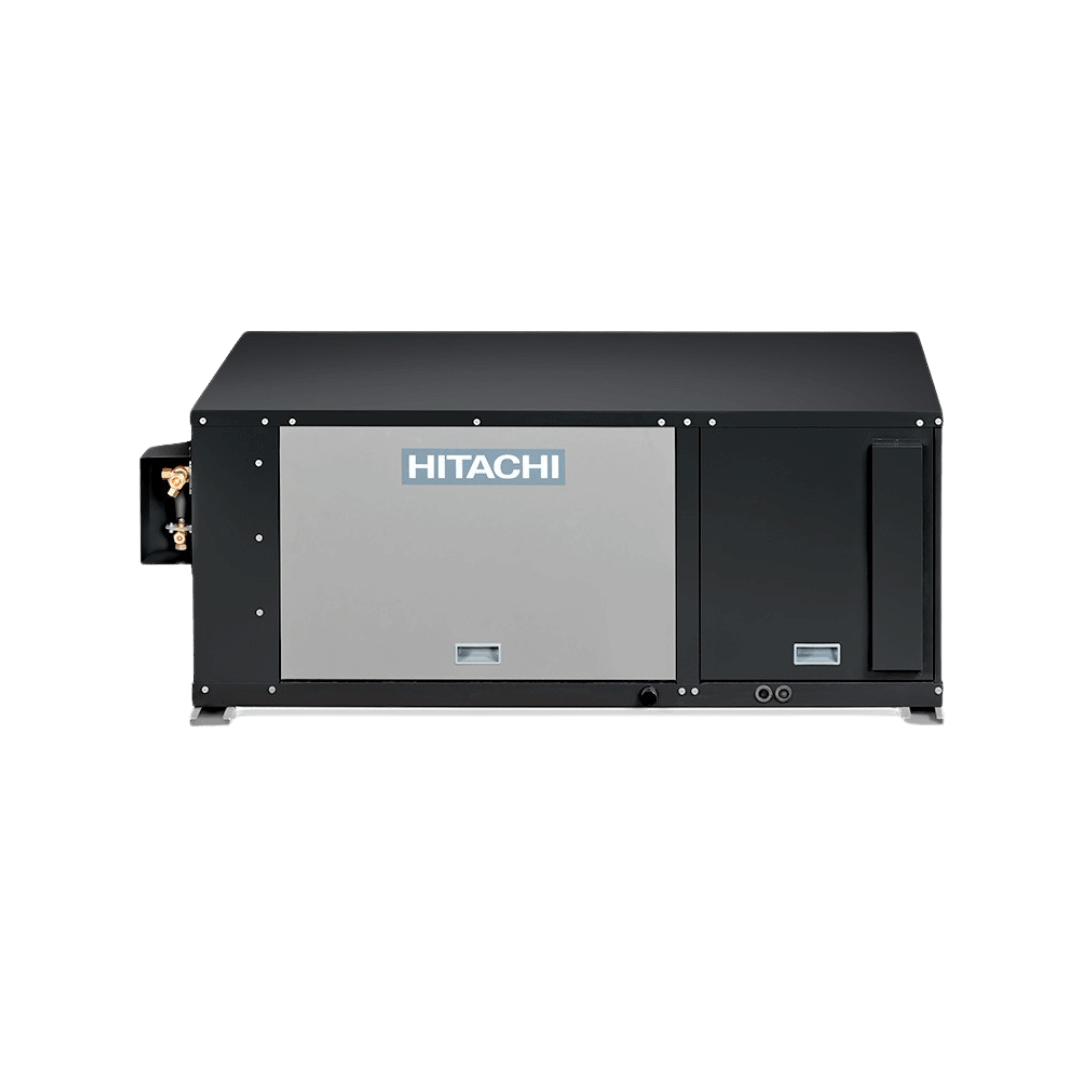

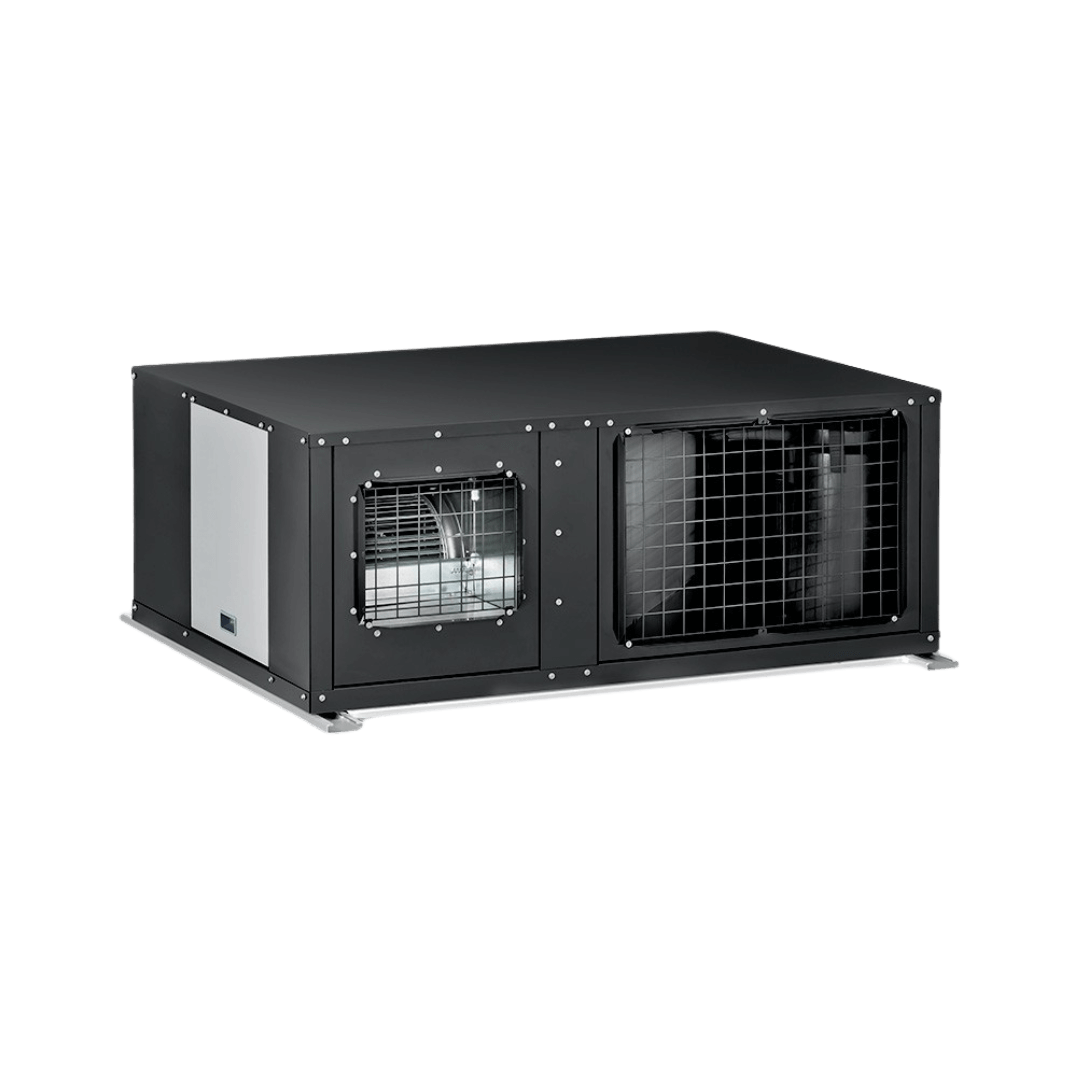

The Hitachi IVX Centrifugal Outdoor Units, including models RASC-4HNPE, RASC-5HNPE, RASC-6HNPE, RASC-8HNPE, and RASC-10HNPE, are designed to provide efficient heating and cooling solutions for various commercial applications. These units offer flexibility with their compact design and high external static pressure, making them ideal for installations with space constraints or ducted applications. Their advanced inverter technology ensures optimal performance and energy efficiency, catering to diverse climate control needs.
| Model Reference | Cooling Capacity (kW) | Heating Capacity (kW) | Power Input Cooling (kW) | Power Input Heating (kW) | EER | SEER | SCOP | Seasonal Cooling ηs,c (%) | Seasonal Heating ηs,h (%) | Max Pipe Length (m) | Max Indoor Units | Pipe Size (Gas / Liquid) | Initial Refrigerant Charge (kg) | Max Current (A) | Dimensions (mm) | Airflow (m³/h) | Sound Pressure dB(A) | Weight (kg) | Electrical Supply | Power Cable Size (mm²) | I/O Connection Cable (mm²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RASC-4HNPE | 10.0 | 10.0 | 2.99 | 2.95 | 3.35 | 5.60 | 3.98 | 221 | 156 | 75 | Up to 5 | 5/8 / 3/8 | 4.1 | 14.1 | 555 x 1515 x 1175 | 3300 | 52 (48) | 192 | 400V / 3Ph / 50Hz + N + G | 5 x 4.00 | 2 x 0.75 |
| RASC-5HNPE | 12.5 | 12.5 | 3.98 | 4.12 | 3.14 | 5.43 | 3.74 | 214 | 146 | 75 | Up to 5 | 5/8 / 3/8 | 4.2 | 16.0 | 555 x 1515 x 1175 | 3600 | 53 (49) | 192 | 400V / 3Ph / 50Hz + N + G | 5 x 4.00 | 2 x 0.75 |
| RASC-6HNPE | 14.0 | 14.0 | 5.09 | 5.74 | 2.75 | 5.22 | 3.66 | 206 | 143 | 75 | Up to 5 | 5/8 / 3/8 | — | — | — | — | — | — | — | — | — |
| RASC-8HNPE | 20.0 | 20.0 | 7.41 | 7.00 | 2.70 | 5.39 | 3.51 | 212 | 137 | 100 | Up to 6 | 1 / 3/8 | 5.7 | 24.7 | 620 x 1850 x 1360 | 6900 | 55 (51) | 300 | 400V / 3Ph / 50Hz + N + G | 5 x 6.00 | 2 x 0.75 |
| RASC-10HNPE | 24.0 | 24.0 | 9.02 | 8.52 | 2.66 | 5.48 | 3.71 | 216 | 145 | 100 | Up to 6 | 1 / 3/8 | 6.2 | 24.7 | 620 x 1850 x 1360 | 6900 | 56 (52) | 303 | 400V / 3Ph / 50Hz + N + G | 5 x 6.00 | 2 x 0.75 |
