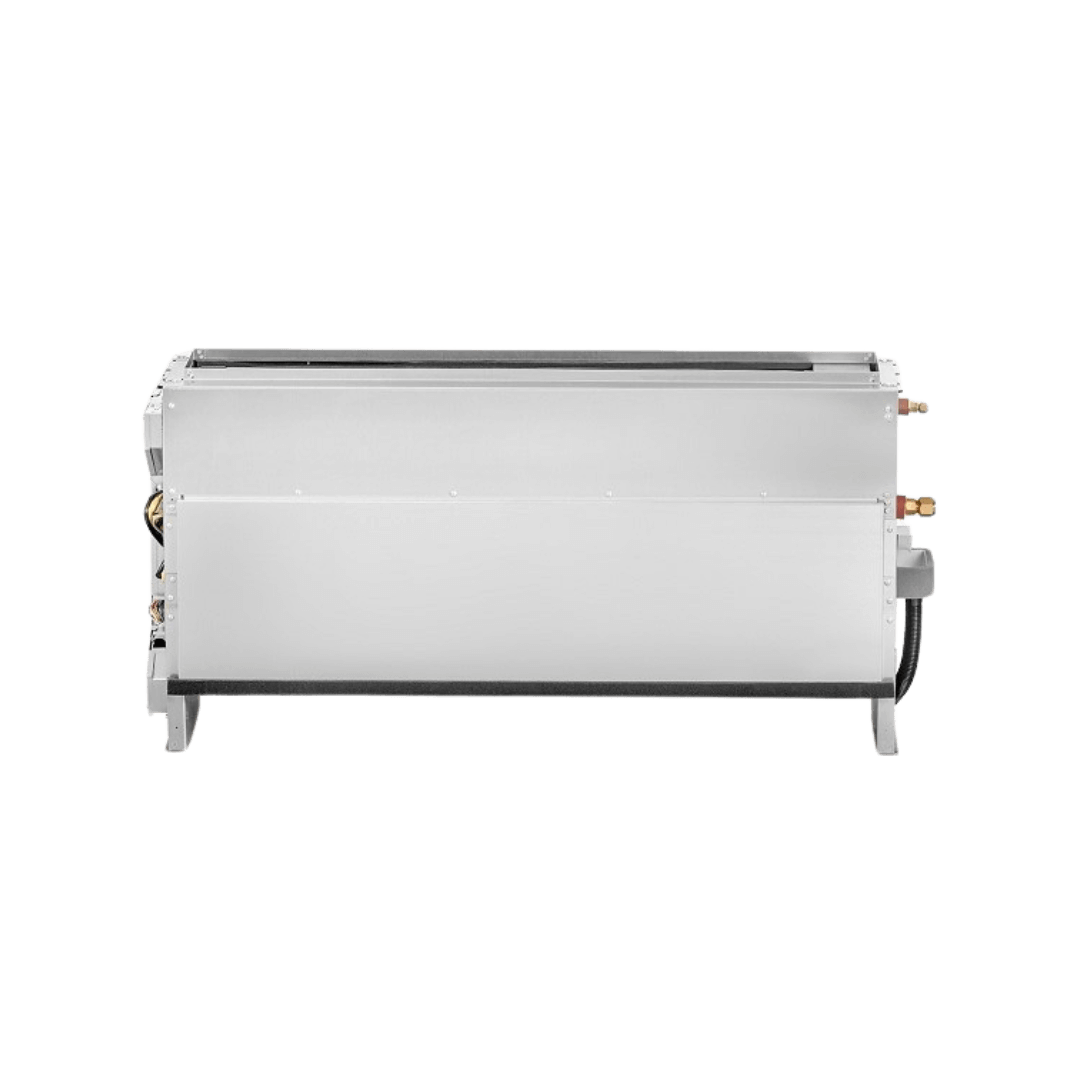

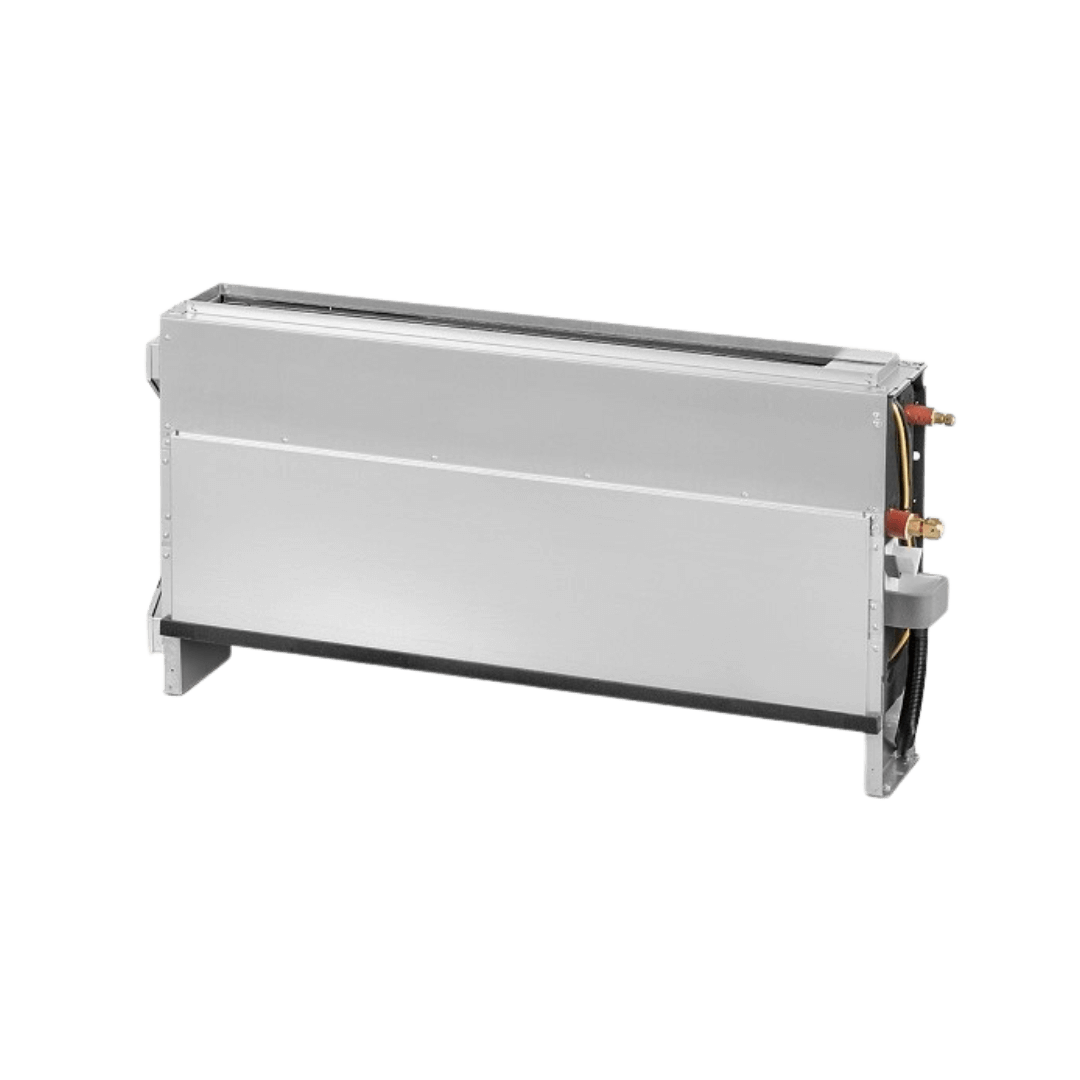

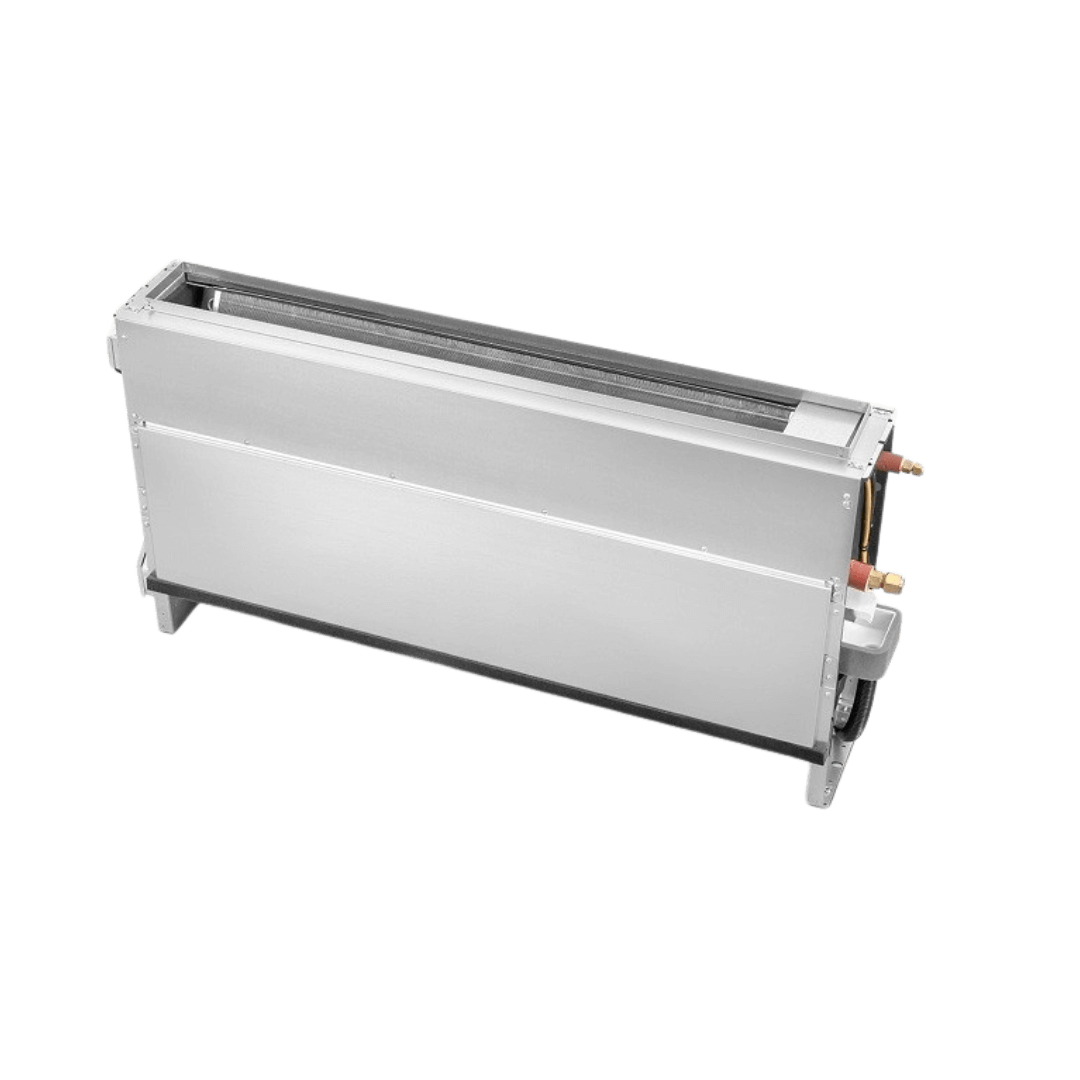

The Hitachi RPFI-FSN2E Series Floor Concealed Uncased Units are designed to provide efficient climate control while maintaining a completely unobtrusive appearance. Unlike traditional floor-standing units, these models are meant to be installed within enclosures, behind walls, or in spaces where a visible unit would not be suitable. With seamless integration into Hitachi’s Utopia Prime and Utopia IVX Standard systems, these units offer flexibility and efficiency for both heating and cooling applications. Their compact size and quiet operation make them an excellent choice for residential, office, and hospitality environments.
| Model | Cooling (kW) | Heating (kW) | Sound Pressure (dB(A)) | Sound Power (dB(A)) | Airflow (m³/h) | Dimensions (mm) | Weight (kg) | Fuse (A) |
|---|---|---|---|---|---|---|---|---|
| RPFI-1.0FSN2E | 2.5 / 2.8 | 2.8 / 3.2 | 29 / 32 / 35 | 57 | 360 / 420 / 510 | 620 × 848 × 220 | 19 | 5 |
| RPFI-1.5FSN2E | 3.6 / 4.0 | 4.0 / 4.8 | 31 / 35 / 38 | 60 | 540 / 600 / 720 | 620 × 973 × 220 | 23 | 5 |
| RPFI-2.0FSN2E | 5.0 / 5.6 | 5.6 / 6.3 | 32 / 36 / 39 | 60 | 660 / 840 / 960 | 620 × 1223 × 220 | 27 | 5 |
| RPFI-2.5FSN2E | 5.6 / 7.1 | 6.3 / 8.5 | 34 / 38 / 42 | 60 | 660 / 840 / 960 | 620 × 1223 × 220 | 28 | 5 |
