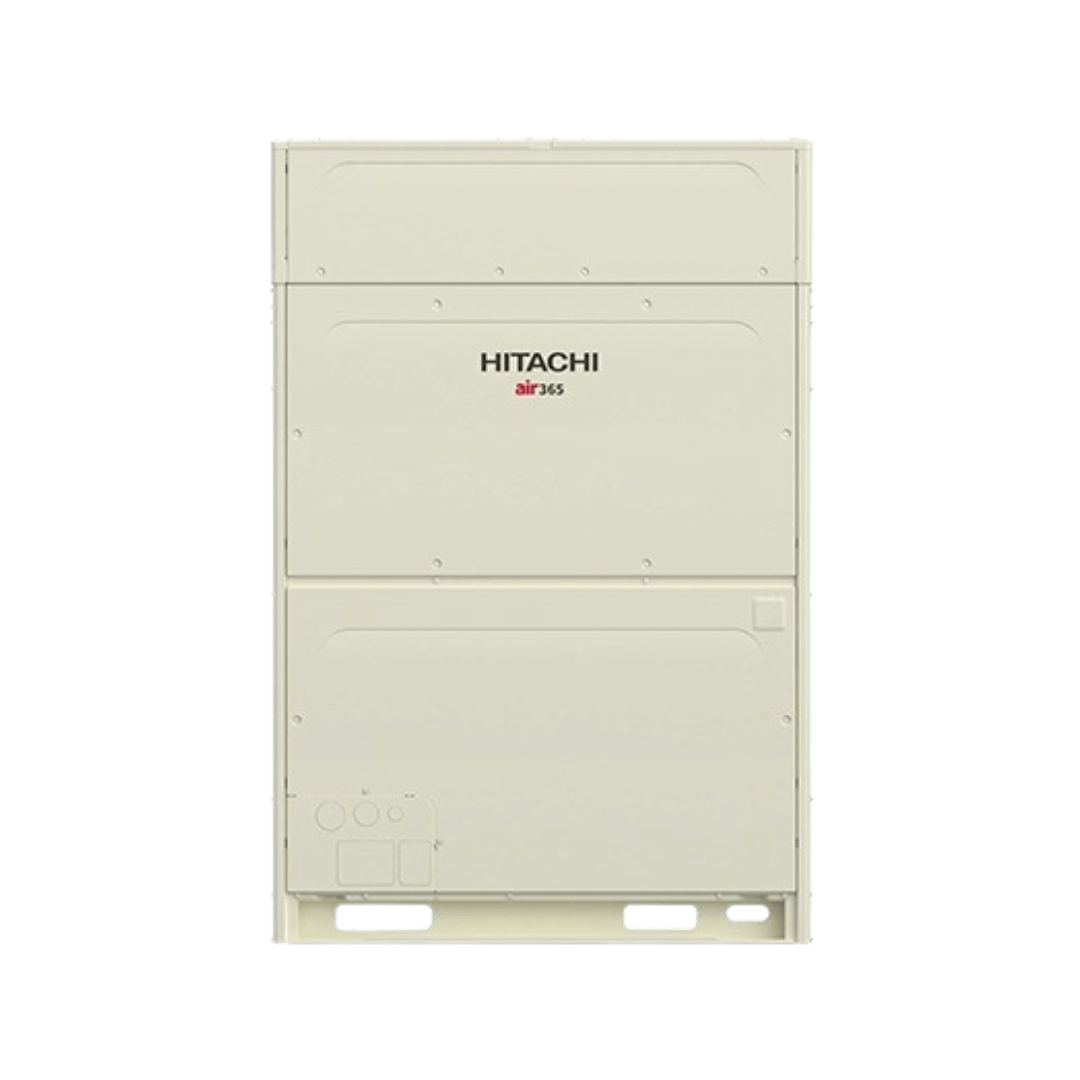

Air365 Max VRF Heat Pump_Recovery R410a 3Ø Outdoor Unit (2) (1)

Air365 Max VRF Heat Pump_Recovery R410a 3Ø Outdoor Unit (3) (1)

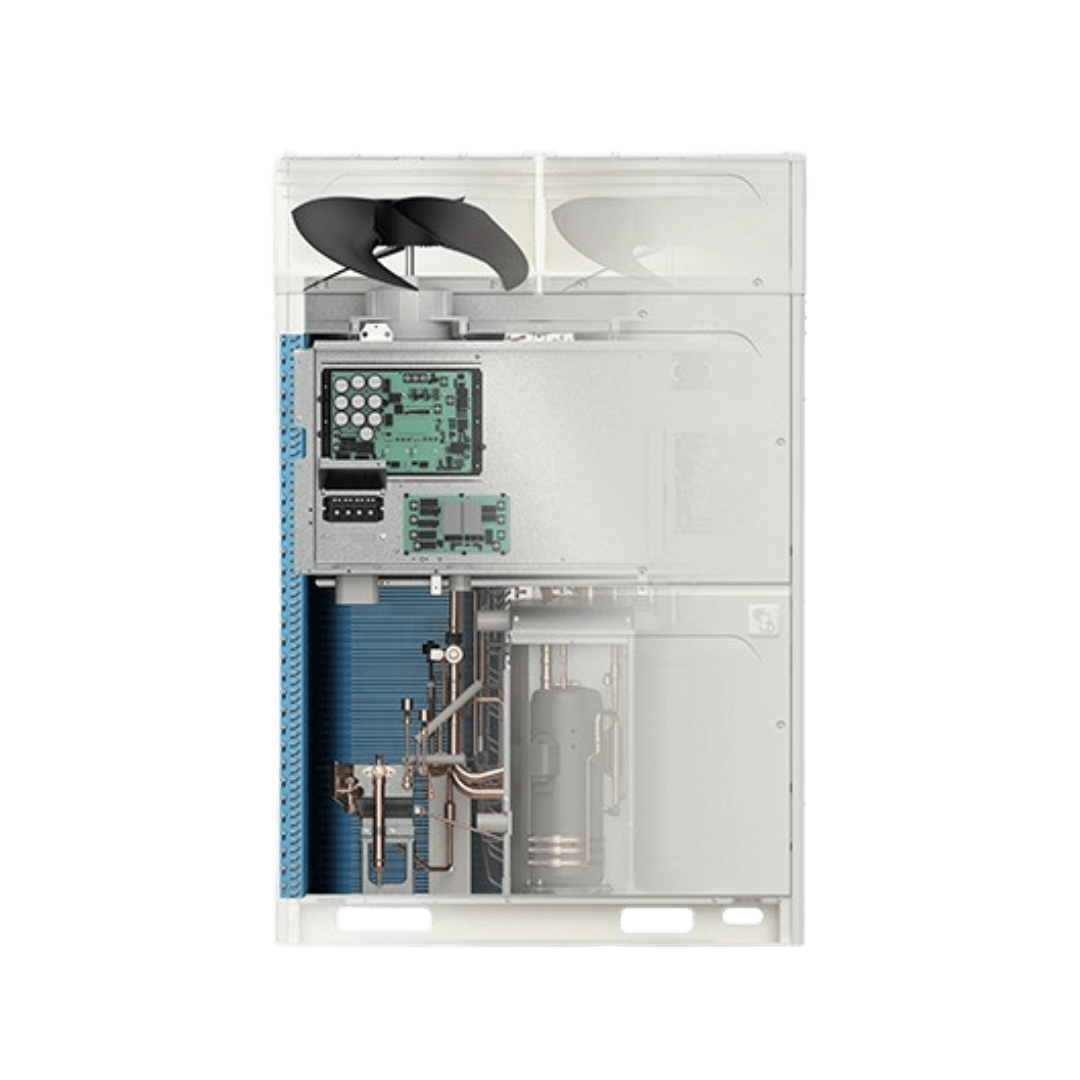

Air365 Max VRF Heat Pump_Recovery R410a 3Ø Outdoor Unit (4) (1)

Air365 Max VRF Outdoor Units

System Type: Heat Pump / Heat Recovery
Refrigerant Type: R410A
Available Capacities: 22.4 – 268.0 kW (Cooling & Heating)
Power Supply: 3Φ 400V
Compressor Type: Inverter (Vapor-Injection Scroll Compressor)
Max Indoor Units: Up to 64 units (depending on model)
Pipe Length Limits: Total piping length up to 1,000 m; Max height difference: 110 m
Efficiency Ratings: SEER: 6.17 – 7.35 | SCOP: 4.24 – 4.76
External Static Pressure: 30/60/80 Pa
Special Features: Smooth Drive 2.0 Technology, Smart Defrost, AirCloud Tap NFC Technology

Product Details

Product Description

The Hitachi Air365 Max VRF Outdoor Units are advanced climate control solutions designed for year-round efficiency and flexibility. Ranging from 8HP to 96HP configurations, these units cater to diverse commercial applications, offering both heat pump and heat recovery functionalities. Equipped with innovative technologies like Smooth Drive 2.0 and AirCloud Tap NFC, they ensure optimal performance, ease of installation, and enhanced user comfort.

Features & Benefits

Smooth Drive 2.0 Technology: Adjusts outdoor unit capacity in 0.1Hz increments, enhancing seasonal efficiency at part loads.
Smart Defrost: Ensures continuous heating by optimizing defrost cycles, maintaining user comfort.
AirCloud Tap NFC Technology: Simplifies commissioning and maintenance through smartphone-based configuration and diagnostics.
Extended Piping Flexibility: Supports total piping lengths up to 1,000 meters and height differences up to 110 meters, offering versatile installation options.
High Efficiency: Achieves SEER values up to 7.35 and SCOP values up to 4.76, contributing to reduced operational costs.

PDF manuals and Technical Catalogues

Model Reference	Nom Cool (kW)	Nom Heat (kW)	SCOP	SEER	Fuse Rating	Pipe Size	Pipe Size (HP Gas)	Body Size	System Combination
RAS-8FSXNS2E	22.4	22.4	4.63	7.35	20	3/4 + 3/8	5/8	Single	8
RAS-10FSXNS2E	28	28	4.56	7.12	25	7/8 + 3/8	3/4	Single	10
RAS-12FSXNS2E	33.5	33.5	4.29	6.79	32	1 1/8 + 1/2**	7/8	Single	12
RAS-14FSXNS2E	40	40	4.51	6.91	32	1 1/8 + 1/2**	7/8	Single	14
RAS-16FSXNS2E	45	45	4.67	7.2	40	1 1/8 + 1/2	7/8	Single	16
RAS-18FSXNS2E	50	50	4.35	6.73	50	1 1/8 + 5/8	7/8	Single	18
RAS-20FSXNS2E	56	56	4.76	6.43	50	1 1/8 + 5/8	7/8	Single	20
RAS-22FSXNS2E	61.5	61.5	4.34	6.17	50	1 1/8 + 5/8	1 1/8**	Single	22
RAS-24FSXNS2E	67	67	4.27	6.19	63	1 1/8 + 5/8	1 1/8**	Single	24
RAS-26FSXNS2E	73.5	73.5	4.32	6.75	Check Module Combination	1 3/8 + 3/4	1 1/8**	Twin	14 + 12
RAS-28FSXNS2E	78.5	78.5	4.38	6.9		1 3/8 + 3/4	1 1/8	Twin	16 + 12
RAS-30FSXNS2E	83.5	83.5	4.2	6.67		1 3/8 + 3/4	1 1/8	Twin	18 + 12
RAS-32FSXNS2E	90	90	4.35	6.8		1 3/8 + 3/4	1 1/8	Twin	18 + 14
RAS-34FSXNS2E	95	95	4.4	6.93		1 3/8 + 3/4	1 1/8	Twin	18 + 16
RAS-36FSXNS2E	100	100	4.25	6.73		1 5/8 + 3/4	1 1/8	Twin	18 + 18
RAS-38FSXNS2E	106.5	106.5	4.4	6.55		1 5/8 + 3/4	1 3/8	Twin	22 + 16
RAS-40FSXNS2E	111.5	111.5	4.27	6.4		1 5/8 + 3/4	1 3/8	Twin	22 + 18
RAS-42FSXNS2E	117	117	4.24	6.4		1 5/8 + 3/4	1 3/8	Twin	24 + 18
RAS-44FSXNS2E	123	123	4.29	6.17		1 5/8 + 3/4	1 3/8	Twin	22 + 22
RAS-46FSXNS2E	128.5	128.5	4.26	6.18		1 5/8 + 3/4	1 3/8	Twin	24 + 22
RAS-48FSXNS2E	134	134	4.24	6.19		1 5/8 + 3/4	1 3/8	Twin	24 + 24
RAS-50FSXNS2E	140	140	4.32	6.78		1 5/8 + 3/4	1 3/8	Triple	18 + 18 + 14
RAS-52FSXNS2E	145	145	4.35	6.86		1 5/8 + 3/4	1 3/8	Triple	18 + 18 + 16
RAS-54FSXNS2E	150	150	4.25	6.73		1 5/8 + 3/4	1 3/8	Triple	18 + 18 + 18
RAS-56FSXNS2E	156.5	156.5	4.35	6.61		2 1/8 + 3/4	N/A	Triple	22 + 18 + 16
RAS-58FSXNS2E	161.5	161.5	4.26	6.5		2 1/8 + 3/4	N/A	Triple	22 + 18 + 18
RAS-60FSXNS2E	167	167	4.24	6.5		2 1/8 + 3/4	N/A	Triple	24 + 18 + 18
RAS-62FSXNS2E	173	173	4.28	6.31		2 1/8 + 3/4	N/A	Triple	22 + 22 + 18
RAS-64FSXNS2E	178.5	178.5	4.25	6.21		2 1/8 + 3/4	N/A	Triple	24 + 22 + 18
RAS-66FSXNS2E	184	184	4.23	6.32		2 1/8 + 3/4	N/A	Triple	24 + 24 + 18
RAS-68FSXNS2E	190	190	4.27	6.17		2 1/8 + 7/8	N/A	Triple	24 + 22 + 22
RAS-70FSXNS2E	195.5	195.5	4.25	6.18		2 1/8 + 7/8	N/A	Triple	24 + 24 + 22
RAS-72FSXNS2E	201	201	4.24	6.19		2 1/8 + 7/8	N/A	Quad	24 + 24 + 24
RAS-74FSXNS2E	206.5	206.5	4.33	6.63		2 1/8 + 7/8	N/A	Quad	22 + 18 + 18 + 16
RAS-76FSXNS2E	211.5	211.5	4.26	6.55		2 1/8 + 7/8	N/A	Quad	22 + 18 + 18 + 18
RAS-78FSXNS2E	217	217	4.24	6.55		2 1/8 + 7/8	N/A	Quad	24 + 18 + 18 + 18
RAS-80FSXNS2E	223	223	4.27	6.4		2 1/8 + 7/8	N/A	Quad	22 + 22 + 18 + 18
RAS-82FSXNS2E	228.5	228.5	4.25	6.4		2 1/8 + 7/8	N/A	Quad	24 + 22 + 18 + 18
RAS-84FSXNS2E	234	234	4.24	6.4		2 1/8 + 7/8	N/A	Quad	24 + 24 + 18 + 18
RAS-86FSXNS2E	240	240	4.26	6.28		2 1/8 + 7/8	N/A	Quad	24 + 22 + 22 + 18
RAS-88FSXNS2E	245.5	245.5	4.25	6.28		2 1/8 + 7/8	N/A	Quad	24 + 24 + 22 + 18
RAS-90FSXNS2E	251	251	4.23	6.29		2 1/8 + 1 1/8	N/A	Quad	24 + 24 + 24 + 18
RAS-92FSXNS2E	257	257	4.26	6.18		2 1/8 + 1 1/8	N/A	Quad	24 + 24 + 22 + 22
RAS-94FSXNS2E	262.5	262.5	4.25	6.18		2 1/8 + 1 1/8	N/A	Quad	24 + 24 + 24 + 22
RAS-96FSXNS2E	268	268	4.24	6.19		2 1/8 + 1 1/8	N/A	Quad	24 + 24 + 24 + 24
